Ladybird Series
GPS Patch Antenna modules offering essential positioning performance,
fast TTFF and exceptionally low power consumption.

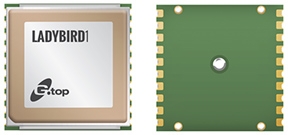

Ladybird 1
Size = 16 x 16 x 4.7 mm• MT3339 Chipset (GPS Patch)
• UART, RTCM, 1PPS, External Antenna
• AGPS, EASY, SBAS, Logger, Anti-Jamming,
• < 2.5 m CEP, - 165 dBm,
• 13 mA tracking (6 mA GLP)
• RTC Crystal, TCXO, Additional LNA, SAW
• Approvals : CE, FCC, ROHS, REACH

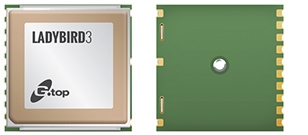

Ladybird 3
Size = 16 x 16 x 6.2 mm• MT3339 Chipset (GPS Patch)
• UART, RTCM, 1PPS
• AGPS, EASY, SBAS, Logger, Anti-Jamming,
• < 2.5 m CEP, - 165 dBm,
• 13 mA tracking (6 mA GLP)
• RTC Crystal, TCXO, SAW
• Approvals : CE, FCC, ROHS, REACH
